HT60Pro Hydraulic Excavator Hydraulic System and High Strength Structural Design

The HT60Pro Hydraulic Excavator combines powerful performance with advanced engineering for superior efficiency and reliability in demanding work environments.

• Efficient Power & Energy Saving: Equipped with Yanmar 4TNV94L National IV engine delivering 36.2kW/2200rpm rated power. Features multiple fuel filtration systems for stable operation and reduced emissions. Automatic engine speed reduction technology minimizes fuel consumption.
• Advanced Hydraulic System: Load-sensitive hydraulic system with 138.6 L/min maximum flow rate. Provides fast response in single-action operations and excellent composite operation capability. Parking brake design ensures smooth operation and precise control.

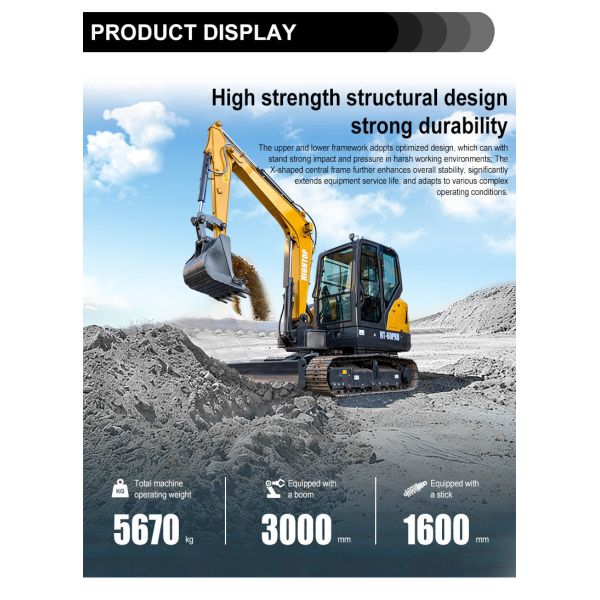

• High-Strength Structural Design: Total operating weight of 5670kg with 3000mm boom and 1600mm arm. Optimized upper and lower framework withstands strong impact and pressure. X-shaped central frame enhances overall stability.
• Wide Operation Range: Maximum excavation radius of 6100mm, maximum excavation depth of 3730mm, and maximum unloading height of 4040mm. Compact tail turning radius of 1655mm for operation in confined spaces.
• Comfortable Operation: Well-designed cabin with wide visibility and suspended seats. LED headlights provide excellent nighttime illumination for enhanced safety.
• Reliable Performance: Rotation speed of 9.5r/min, walking speed of 2.3-3.8km/h, and strong climbing ability. VHD sleeves in key areas extend lubrication cycles and ensure long-term stability.
